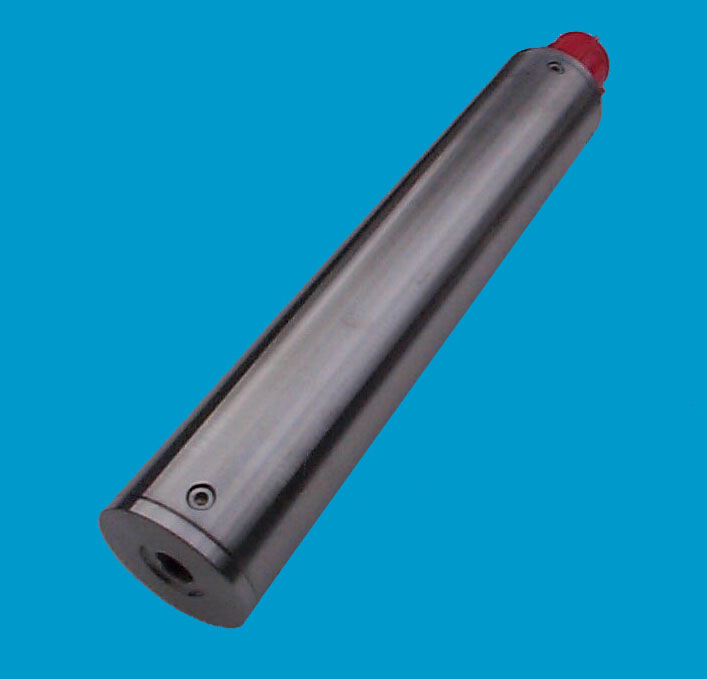

PTX12 Digital Depth/Pressure Sensor
- Fully submersible
- RS232 or RS485 digital outputs
- Optional galvanic isolation
- Support for multipoint operation
The PTX12 series of sensors feature stability and accuracy
in a stainless pressure housing. A range of full scale outputs,
calibrated in depth or pressure units, are available to provide
optimal accuracy and resolution for a given application.
The free running or polled digital output operates at user
selectable baud rates. Hardware support for multi-point communication
topologies enable multiple sensors to operate on a common data
bus.
| Outline Specification | |||
| Standard ranges | 1, 10, 100, 200 bar 10, 100, 1000, 2000 m |
|
 |
| Accuracy | 0.25% of full scale | ||
| Resolution | 0.01% of full scale | ||
| Data standards | RS232 or RS485 ASCII text format |
||
| Data rate | 1200 to 19200 baud | ||
| Power supply | Nominal 12 or 24V | ||
| Size | 50 x 260 mm | ||
| Applications | |
| Submersible depth measurement | Tidal studies |
| Wellhead pressure monitoring | Flood level warning |
| Underwater construction | Reservoir level management |
| Coastal construction | Sewage and water treatment plant |
